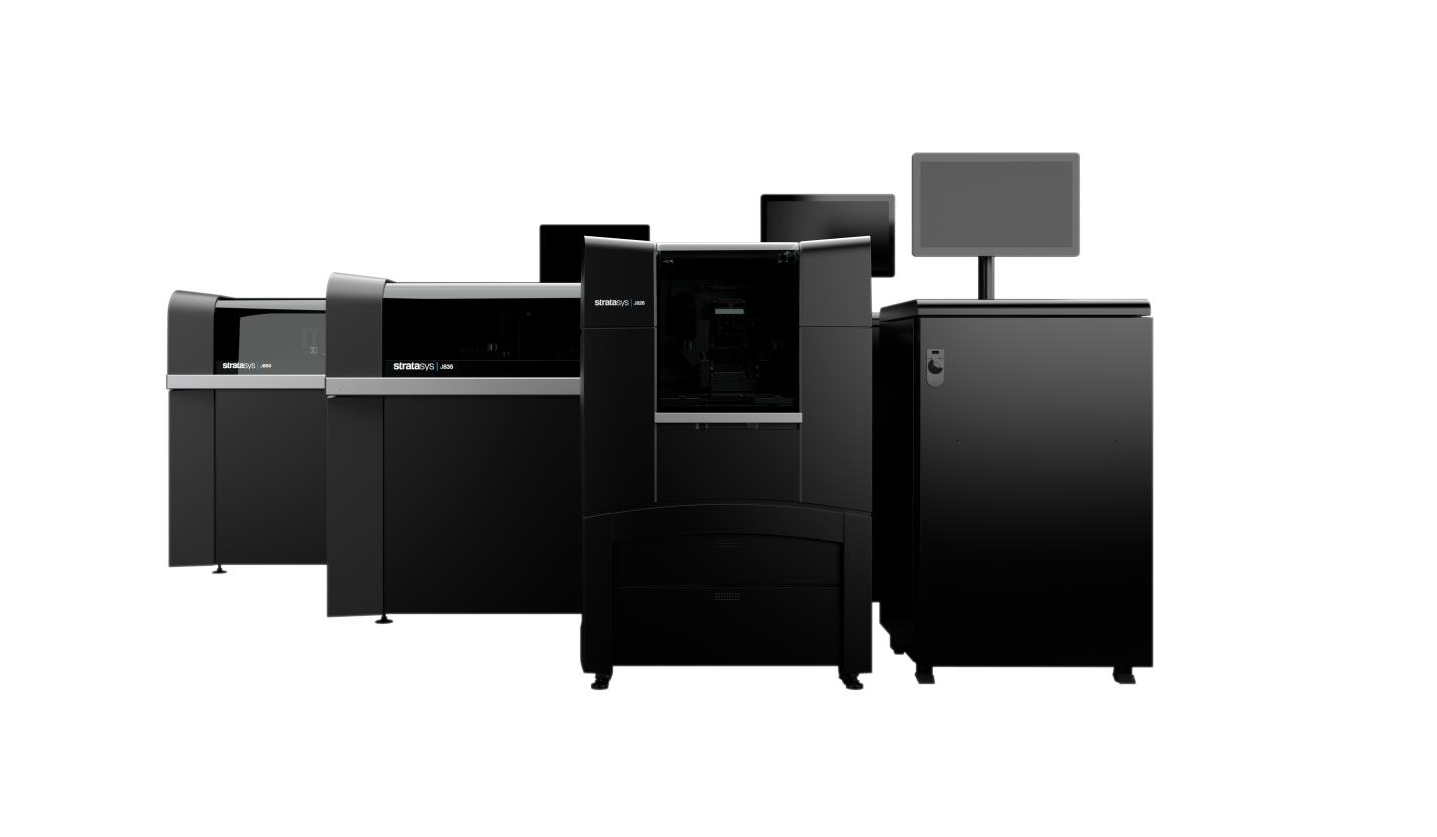

Born specifically for designers, the new 3D printer Stratasys J826™ is available!
The brand-new J826 3D printer broadens the boundaries of full-color printing. It can load 7 kinds of PolyJet 3D
printing materials at the same time, and is tailor-made for enterprises and educational institutions with medium
modeling needs at about half the price of the existing J8 series printers.
On February 11, Stratasys recently released a mid-range full-color PolyJet 3D printer-J826™, which is another new
masterpiece after the high-end J850™ 3D printer was released in October last year.
Relying on the mature technology of J850™, the J826™ printer provides enterprise designers with end-to-end
design process solutions and highly realistic simulations at a lower price. The model created by it can be delivered to
the designer earlier in the production process, allowing it to make better decisions and the final product.
BiologIC Technologies, headquartered in Cambridge, UK, is developing a medical device known as the "Life Science
Desktop PC". Its product architecture is 100% printed using J826™.
“This full-color, multi-material 3D printer has broken the design limit for us and accelerated our design process. It
allows us to use advanced materials to create highly realistic models, and after the product is finalized, it can be
effectively customized. ."——Co-founder Nick Rollings
More importantly, J826™ can effectively save time and production costs, and produce the most realistic models in
the industry.
In the designer's view, rapid modeling is sometimes more important than creating a realistic model. Because
putting ideas into practice requires too many processes, including coloring, assembly, and the use of a series of
complex technologies, if the model can be obtained earlier and the errors can be corrected in time, it means that the
product can enter the market faster— —3D printing technology is committed to solving these challenges faced by
designers.
Compared with J850™, the newly launched Stratasys J826™ 3D printer can output the same high-quality and high-
precision, but with smaller trays and lower prices. It is mainly for consumer goods, electronics, automotive and
education industries with medium-sized construction Model required enterprises.
Highlights revealed
Quality printing:
J826 has unlimited combinations of colors, transparency and softness, simulating textures such as leather and wood.
At the same time, it supports PANTONE® color verification, presenting you with a more realistic effect.
Efficient production capacity:
J826 is equipped with 3 printing modes with different speeds to process details more finely.
Easy to use:
J826 can be directly printed in professional CAD format from your favorite design software, saving you time for

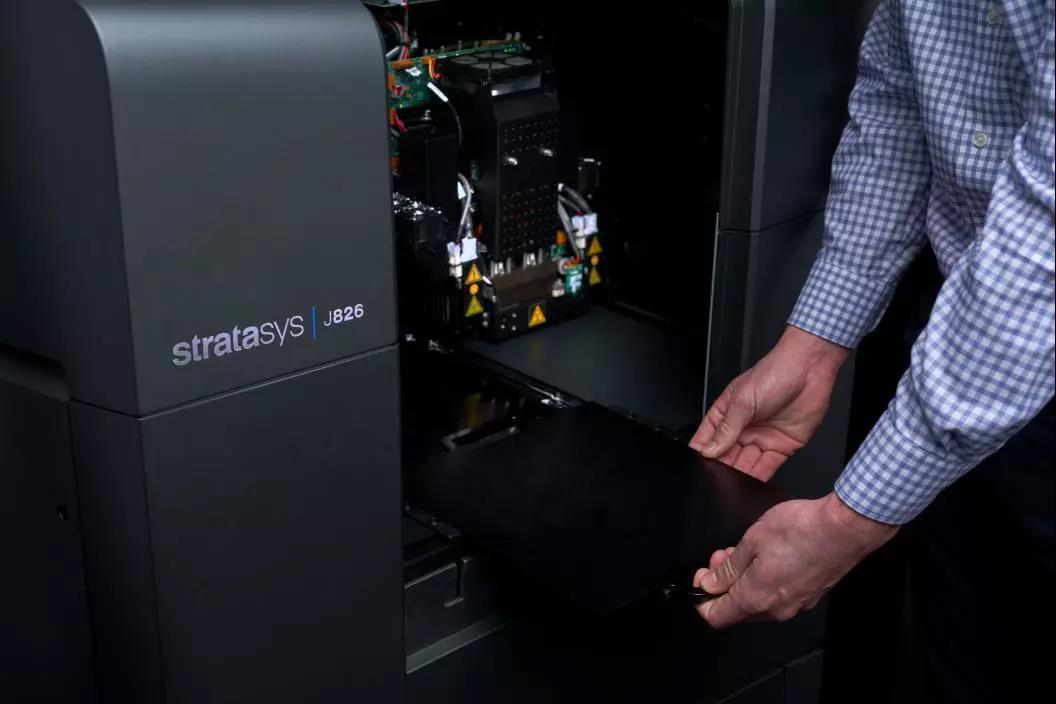

format conversion and STL adjustment; the detachable silo is more convenient for cleaning, and supports automatic
creation and removal.
widely used:
J826 can use 7 kinds of printing materials at the same time-rigid, flexible, transparent or opaque, all colors can be
satisfied at one time; to avoid downtime caused by changing materials.
"We believe that excellent resolution, full color, multi-materials and high performance should not only be the
characteristics of some 3D printers. This is why we have extended the world-class J8 series 3D printer functions to the
new J826-to compare Low prices meet the needs of medium-sized enterprises and educational institutions."
——Shamir Shoham, vice president of Stratasys PolyJet business unit
Stratasys J826™ Technical Specifications
Model material:
Vero™ series, including VeroVivid™ color, Agilus30™ flexible material series, transparent VeroClear™, VeroUltraClear
(to be added in 2020)
Supporting materials:
SUP705™ (water jet cleaning), SUP706B™ (soluble)
Build size:
J826: 255×252×200 mm (10 x 9.9×7.9 inches)
Layer thickness:
In Super High Speed2 mode, the horizontal build-up layer is as low as 14 microns (0.00055 inches) and 55 microns
(0.002 inches)
J826 system size:
820×1310×665 mm (32.28×51.57×26.18 inches)
J826 system weight:
234 kg (516 lb)
J826 silo size:
1119×656×637 mm (44×25.8×25.1 inches)
J826 silo weight:
153 kg (337 lb)
Accuracy:
For the model printed on rigid materials, the typical deviation of its size from the STL size is based on the size: not
more than 100 mm – ±100μ; more than 100 mm – ±200μ
software:
GrabCAD Print
