Polymaker released a new 3D printing pellet product line-PolyCore™
On July 8, 2020, Polymaker announced at the TCT Asia exhibition that it officially released its new 3D printing pellet
product line, the PolyCore™ series.
In recent years, the super-large 3D printing technology promoted by the US Oak Grove National Laboratory has
developed rapidly. When manufacturing large-scale components, this technology has outstanding advantages in
terms of cost, efficiency and craftsmanship, and has a broad prospect on the application side.
Case number one

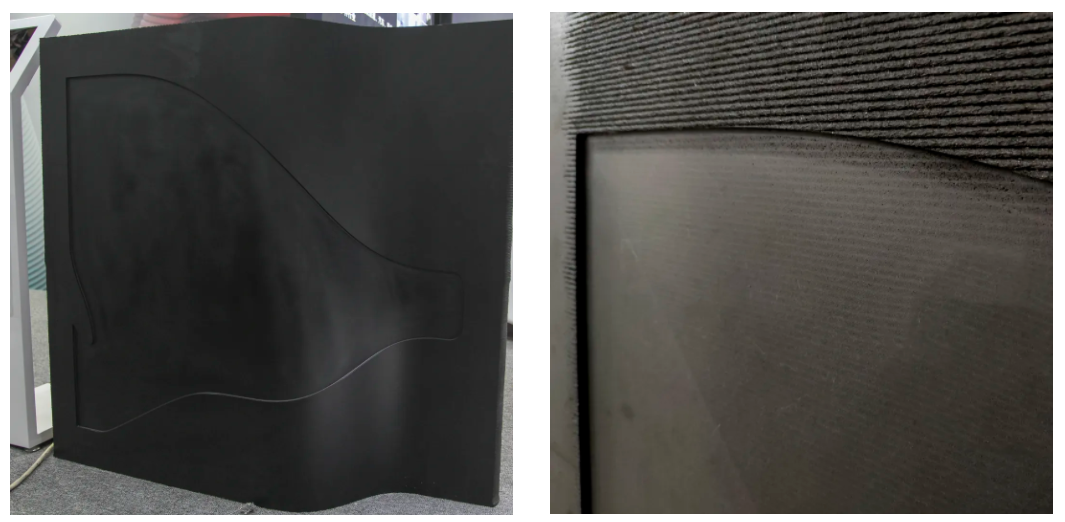

Tongji University Yichi-Racing Car Shell Mould
Application category: Mould
Moulds are the most advantageous application of super-sized 3D printing technology. In the manufacturing process,
the basic shape is printed by 3D, and then CNC machining is performed to create the final mold. The entire process
can be completed in about 24 hours. And the final mold size accuracy made by this process can reach 0.01mm.
The Tongji University Yichi team used this new technology to make car shell molds. After laying the carbon fiber
composite material on the mold, it is placed in a vacuum autoclave. After the autoclave equipment heats up,
pressurizes, heats up, cools down, and releases pressure, and after curing is completed, remove the mold from the
autoclave to obtain car shell made of carbon fiber composite materials. This kind of autoclave molding process puts
forward higher requirements on the heat resistance and dimensional stability of mold materials. Polymaker
cooperated with Covestro to launch a 20% carbon fiber reinforced PC material-PolyCore™ PC-7422, which can meet
the requirements of autoclave process for mold heat resistance and dimensional stability. Polymaker's long-term
partner, Kuying Robot, successfully completed the mold 3D printing and CNC machining and cutting post-processing
work.
Case two

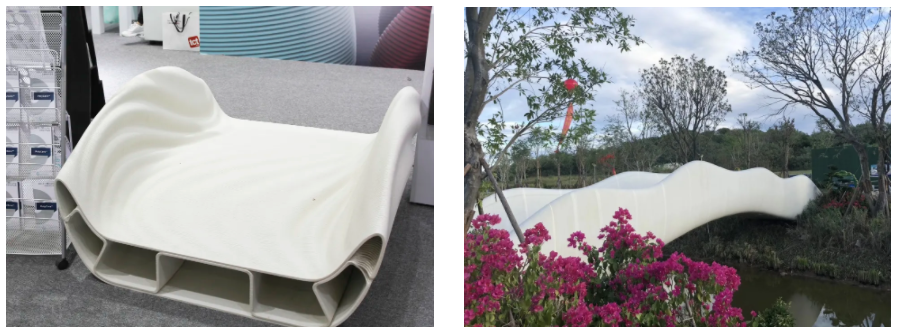

Shanghai Construction Engineering Group-Oversized 3D printed pedestrian landscape bridge
Application category: landscape sketch
Shanghai Construction Engineering Group has two large-size 3D printed pedestrian landscape bridges, which are
respectively erected in Shanghai Taopu Central Greenland Park and the Baiqi Lake Ecological Continuous Belt in
Quanzhou, Fujian. The perfect combination of Cool Eagle Robot's ability to control technology and craftsmanship
and Polymaker's control of materials have achieved these two current domestic large-scale 3D printing technology
application models in landscape architecture. Because the landscape bridge is used outdoors, Polymaker chose
weather-resistant ASA material.
Through the completion of practical application projects, Polymaker has mastered the test methods for super-size
pellets 3D printing and has accumulated rich experience. It can not only provide customers of PolyCore™ pellets with
high-quality raw materials and related material technical information, but also Provide a full set of related services
from testing, to printing, to post-processing.
Polymaker always takes material technology as the core and application-oriented, exerting the synergy of materials,
equipment and software to create value for customers. Introduction: In the large-scale and large-scale manufacturing
of FDM, it is a trend to directly use granular materials, which not only has higher molding efficiency, but also lower
material costs.
