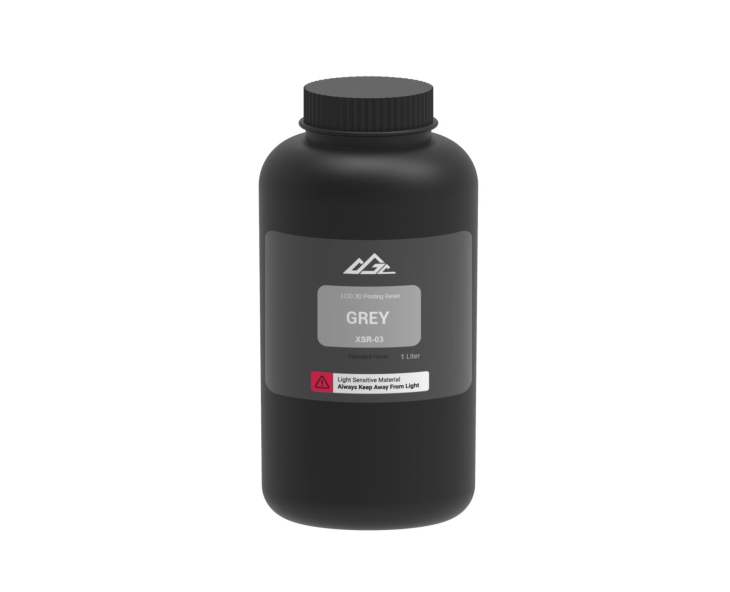

Grey Resin
Product introduction:
Grey Resin XSR03 is most popular resin, with full mechanical property and high cost performance price ratio, surface high precision and dimension high precision in industry spare parts or hand module. Customer designed colors. High performance price ratio LCD series optimization Low smell, non toxic
- Product Description
We are committed to the 3D printing industry,we have our own factory .Everything will be shipped soon and with high quality. Welcome to place order
DESCRIPTION
Standard Resin
Tesh Specs
Grey Resin XSR03 is most popular resin, with full mechanical property and high cost
performance price ratio, surface high precision and dimension high precision in industry
spare parts or hand module. Customer designed colors.
High performance price ration;LCD series optimization;Low smell, non toxic
Grey Resin Test Sheet
Test Item | Result(AVG) | Method | Units |
Hardness | 79 | ASTM:DD240-05 | / |
Viscosity(25℃) | 522.0 | ASTM:D4212-10 | mpa.s |
Notch IZOD | 2.7 | ASTM:D256-10 | KJ/m2 |
Liquid Density | 1.100 | ASTM:D647-12 | g/cm3 |
Solid Density | 1.184 | ASTM:D647-12 | g/cm3 |
Shrinkage Percentage | 7.1 | ASTM:D647-12 | % |
Flexure Strength | 23.4 | ASTM:D790-10 | Mpa |
Ultimate Tensile Strength | 23.4 | ASTM:D638-14 | Mpa |
Elongation | 14.2 | ASTM:D638-14 | % |

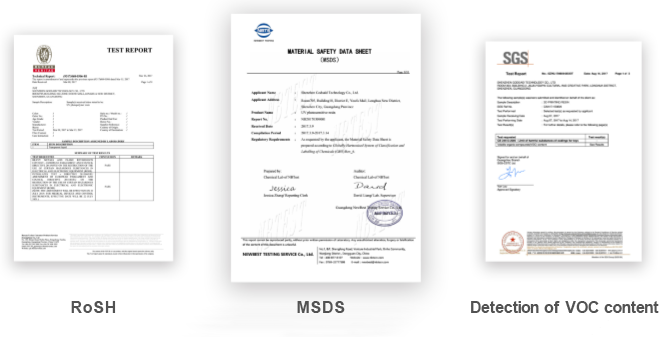

Grey Resin Inspection Certificates
Feature
1. LCD molding resin
Professionally optimized for LCD weak light source molding, higher printing efficiency than LCD/
DLP/SLA compatible resins on the market.
2.High model accuracy
Low shrinkage, stable printing size, high printing accuracy, fine texture of the model, smooth
surface, three-dimensional presentation of details.
3.High curing speed
XINSHAN resin increases the printing speed and shortens the curing time while ensuring the
strength of the molded parts and not excessive shrinkage, so as to improve the printing efficiency
of the LCD machine as much as possible.
4.Strong and balanced
The finished model has good strength and flexibility, excellent molding and impact resistance.
Materials that are too hard are more likely to shatter after being bumped, but materials that are
too flexible are more prone to stretch deformation and breakage when printing details, which
affects molding accuracy and aesthetics.

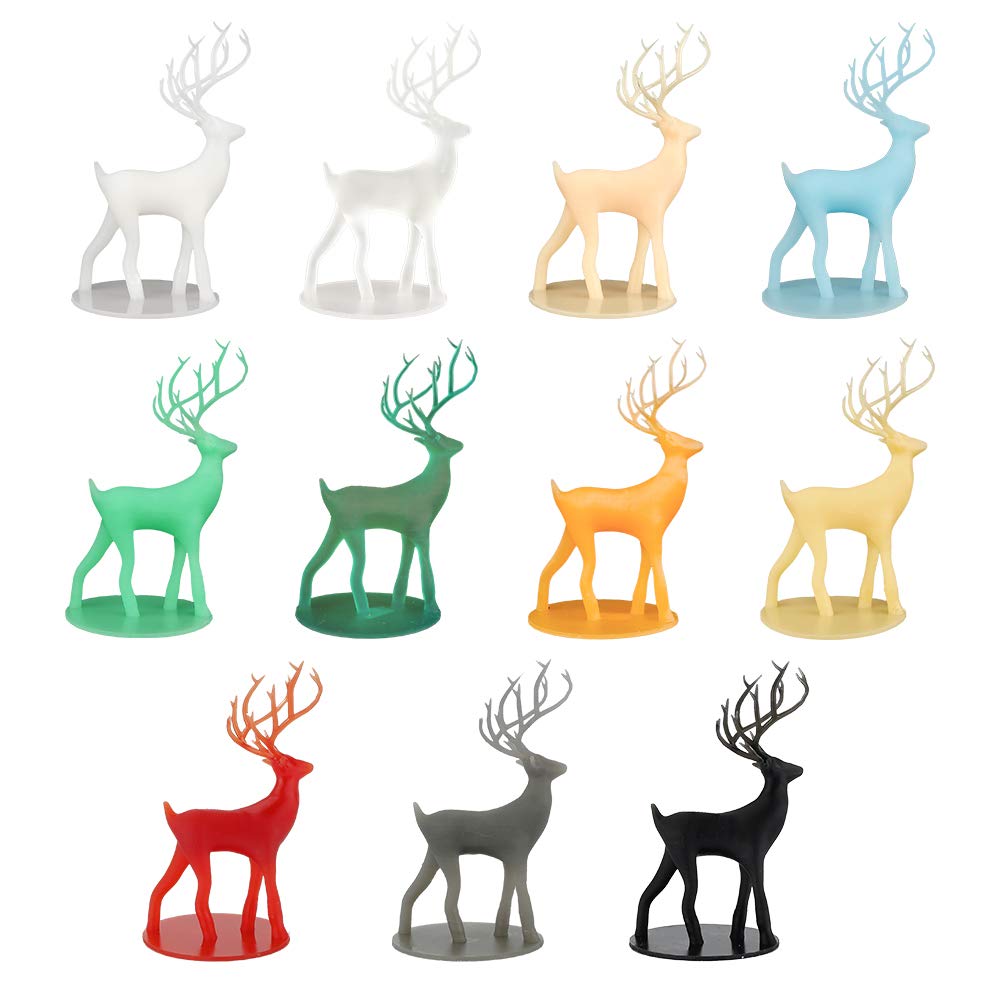

5.Bright and pure colors
The color is bright, pure and full, in line with the international G7 standard
APPLICATION

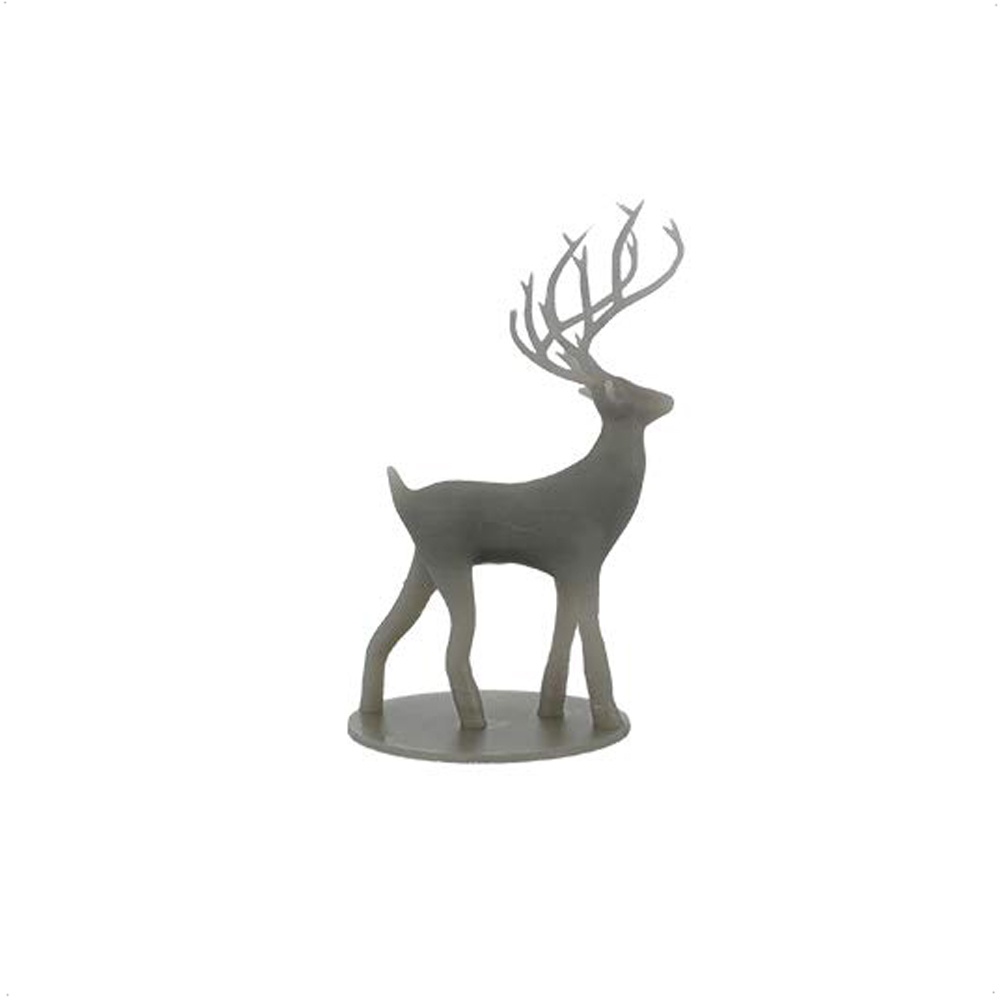

Application display
Proof of concept, functional testing, mold manufacturing for prototype industry,
consumer products, medical, display, education, and other professional markets.
Precautions
1.Shake well before use. It is forbidden to use resin in places exposed to a lot of sunlight;
2.Do not take orally, keep away from children, wear gloves before use, avoid direct contact with
skin, and keep indoor ventilation;
3.Do not get into the eyes, if accidentally touched, rinse with plenty of water as soon as possible.
If you feel unwell, seek medical advice promptly;
4.The printed resin model needs to be cleaned with high-concentration alcohol (above 95% is
recommended, the higher the better) for about 30 seconds;
5.Do not pour the used resin in the trough back into the unused resin, and do not leave the resin
in the trough for a long time without using it;
6.(If you don't use it for a long time, you can put the resin into the container and keep it sealed
and shading with a plastic wrap) to prevent the resin from being polluted and affecting the
printing effect;
Storage method:
1.Store in a dark place at room temperature. Sunlight contains ultraviolet rays, which will cure the
photosensitive resin; it is not affected by ultraviolet light under test light;
2.It is recommended to store at an ambient temperature of 15℃-35℃, the lower the temperature,
the higher the resin viscosity.
3.Keep sealed to avoid excessive dust or damp, affecting the print quality
No matter what you need, please feel free to contact us.
Contact Us : xslightings@xslightings.com
-
The x-axis direction of the print model is offset
Resolvent:
1: The synchronous wheel on the x-axis motor is loose and the jacking screw on the lower synchronous wheel is tightened;
2: The belt is used for a long time and becomes loose. It can be tightened with elastic buckle.
-
How to replace the consumables in printing
Resolvent:
When printing filling or supporting, rotate the knob anticlockwise on the main interface of the display screen to adjust the printing rate FR100% to 10%. After the printing speed drops, press and hold the extrusion spring clip to quickly pull out the old consumables, and then load the prepared new consumables into the printer (note that the consumables should be inserted in place). Then adjust the printing rate to 30% - 40% to see if it can print normally, and then adjust the printing rate to 100% after everything is normal.
-
Leveling steps while printing
Resolvent:
When printing, rotate the knob anticlockwise to reduce the FR100% (printing rate) on the screen to 30%, and the printing speed will decrease. When printing the bottom layer, you can gently touch the printed consumables to see whether they are glued to the platform. If not, it means that the gap between the nozzle and the platform is too large. Adjust the platform here until the consumables near here can stick to the platform In other places.
