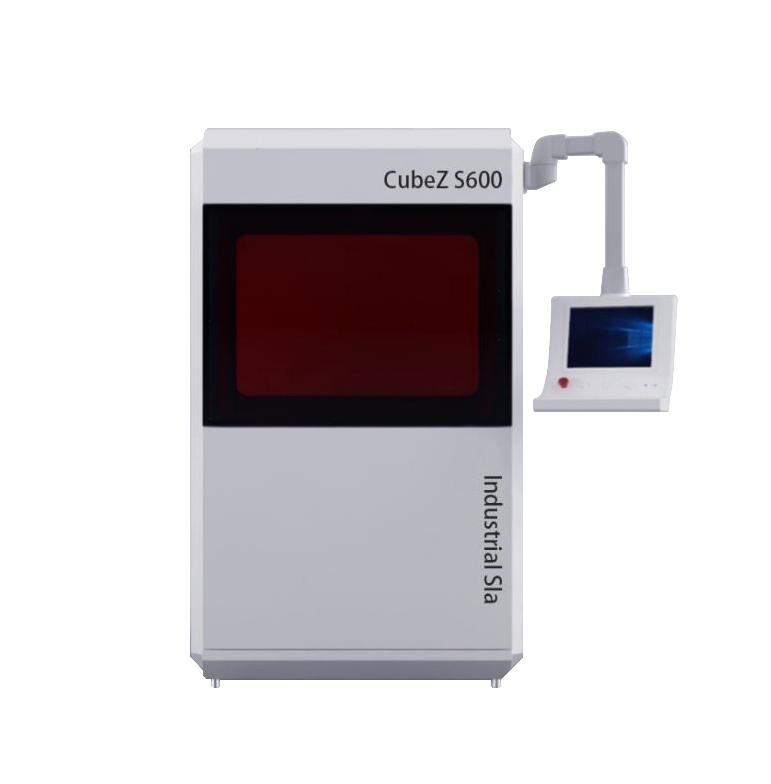

CubeZ S600
Product introduction:
Industrial-grade 3D printers have the characteristics of large printing size, high efficiency, high precision and stable performance, which can meet the requirements of many engineering applications.
- Product Description
We are committed to the 3D printing industry,we have our own factory .Everything will be shipped soon and with high quality. Welcome to place order
DESCRIPTION
Brief introduction

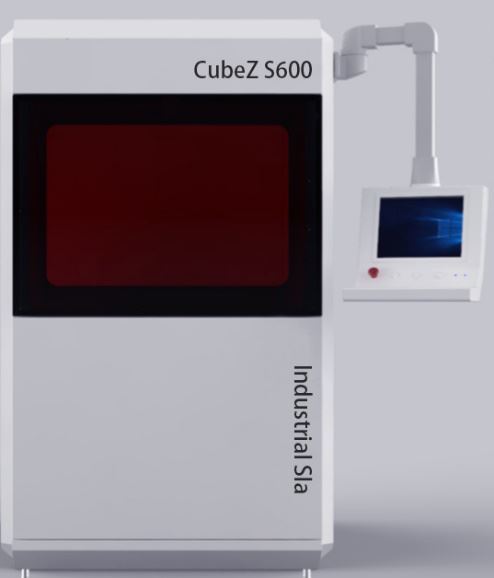

CubeZ S600
The machine is industrial grade developed product. Big printing size 600*600*450mm, high printing efficiency (1.3 times than normal SLA printer). Capacity 5.5kg printing raw material everyday. High precision and stable characteristics. Printing frame has good surface appearance. Fit for different printing raw materials, high toughness, high temperature resistance, high transparency, meet many engineering application requirement. Reduce manufacturing cost, useful for small batch production. |
Provide smart installation for your 3D printer, After installation, the machine will recognize your 3D
slice model and create the most optimized printing operation for you.
Equipment parameters
Tesh Specs
Laser type | Solid-state Laser Nd:YV04 |
Wavelength | UV λ=355nm |
Mini. Power | 350mv (Actual) |
Spot diameter | 0.1-0.5 (Variable) |
Scanning mode | Scancube10 (Import) Selected domestic |
Part scanning speed | 8.0m/s |
Part jump speed | 10.0m/s |
Control system | 3DP V2.01 |
File type | STL, SLC slicing |
Coating method | Intelligent positioning vacuum coating |
Normal layer thickness | 0.1mm |
Quick production layer thickness | 0.125mm |
Vertical resolution | 0.0005mm |
Repeated positioning accuracy | ±0.01mm |
Dimensional accuracy | ±0.05/100mm |
Feature
1. Large volume with high precision: 600 X 600 X 450 printing space, Maximum improves production effic iency and flexibility. Accuracy grade 0.05 mm, can manufacture precision parts and complex structure. 2. Variable spot technology: Core components of patented technology, freely switch variable spot system, improve printing efficiency, meet enterprise’product development requirement. 3. Negative pressure coating system: Auto level regulation smoothing liquid surface, layer thickness can be precision 0.05mm, improve printing frame surface evenness. 5. Industrial operation platform: Big size LCD display panel, good interface, easy operation, meet many end customers. 6. Multiple raw materials choice: Support high transparency\ colorful\ high temperature resistance\ high toughness; meet various industry material characteristics requirement. |
APPLICATION
★Hand board industry ★Auto parts ★Home appliances ★Lamp design manufacturing
★Cultural innovation and animation ★Medical model and equipment ★Education industry

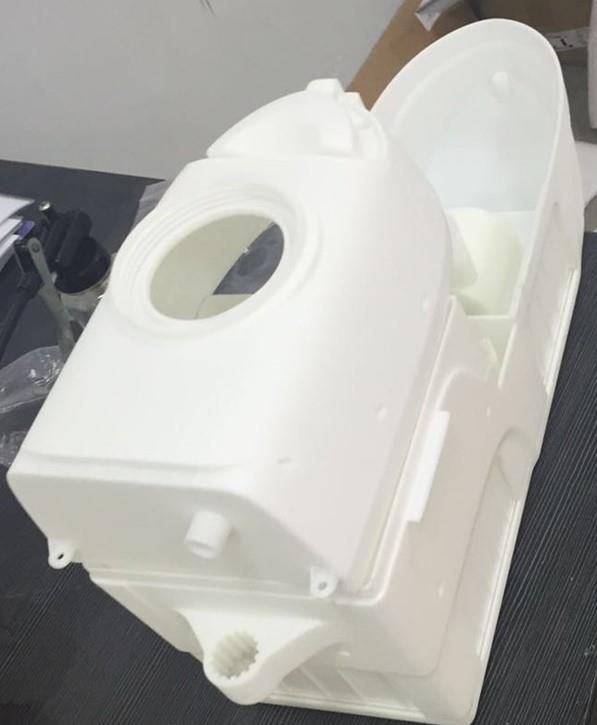

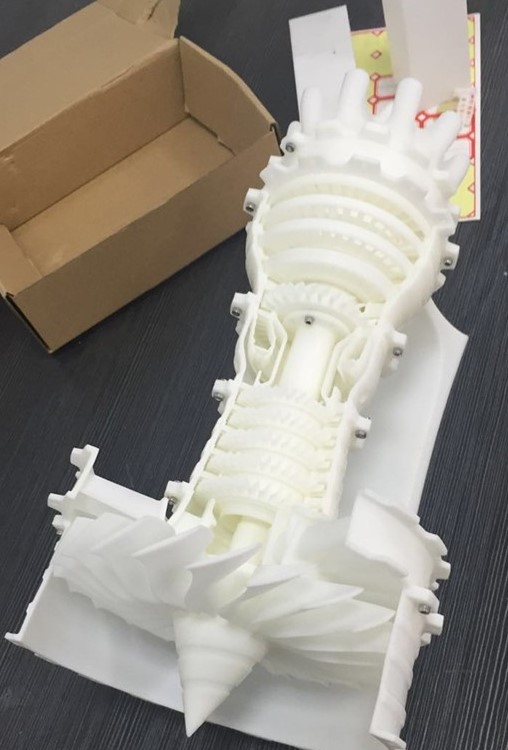

Model display
No matter what you need, please feel free to contact us.
Contact Us: xslightings@xslightings.com
-
The x-axis direction of the print model is offset
Resolvent:
1: The synchronous wheel on the x-axis motor is loose and the jacking screw on the lower synchronous wheel is tightened;
2: The belt is used for a long time and becomes loose. It can be tightened with elastic buckle.
-
How to replace the consumables in printing
Resolvent:
When printing filling or supporting, rotate the knob anticlockwise on the main interface of the display screen to adjust the printing rate FR100% to 10%. After the printing speed drops, press and hold the extrusion spring clip to quickly pull out the old consumables, and then load the prepared new consumables into the printer (note that the consumables should be inserted in place). Then adjust the printing rate to 30% - 40% to see if it can print normally, and then adjust the printing rate to 100% after everything is normal.
-
Leveling steps while printing
Resolvent:
When printing, rotate the knob anticlockwise to reduce the FR100% (printing rate) on the screen to 30%, and the printing speed will decrease. When printing the bottom layer, you can gently touch the printed consumables to see whether they are glued to the platform. If not, it means that the gap between the nozzle and the platform is too large. Adjust the platform here until the consumables near here can stick to the platform In other places.
