Bluer Plus
Product introduction:
Large-size FDM and high-quality printing surface make it more widely used. It supports printing of multiple materials and can meet various needs of users.
- Product Description
We are committed to the 3D printing industry,we have our own factory .Everything will be shipped soon and with high quality. Welcome to place order
DESCRIPTION

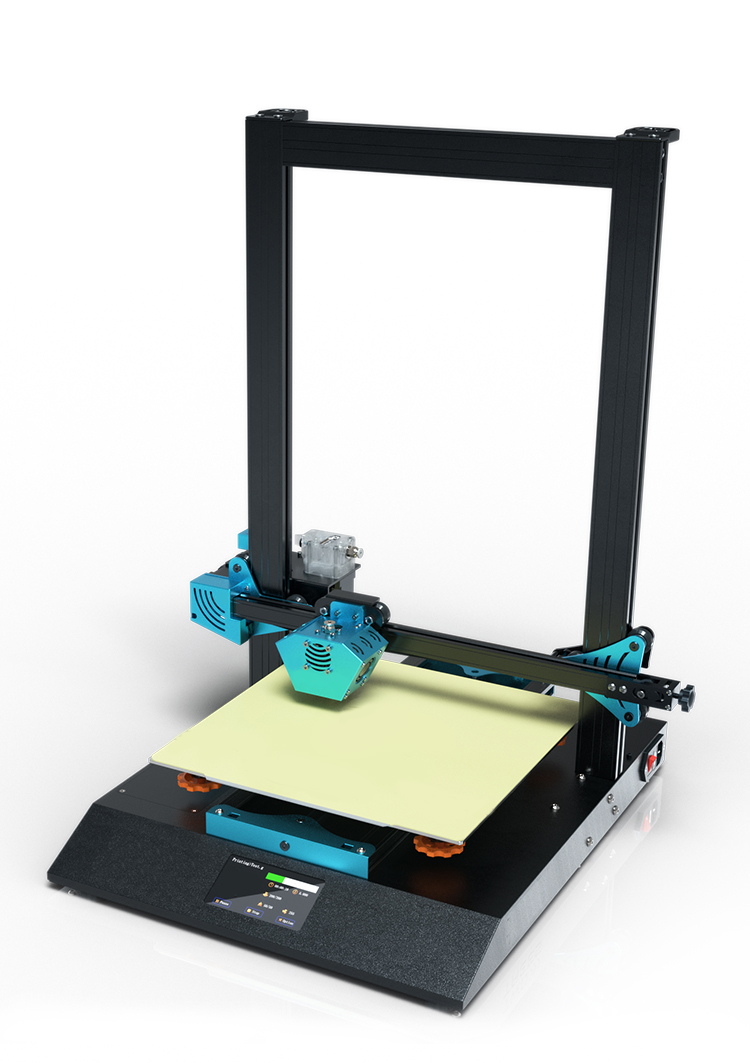

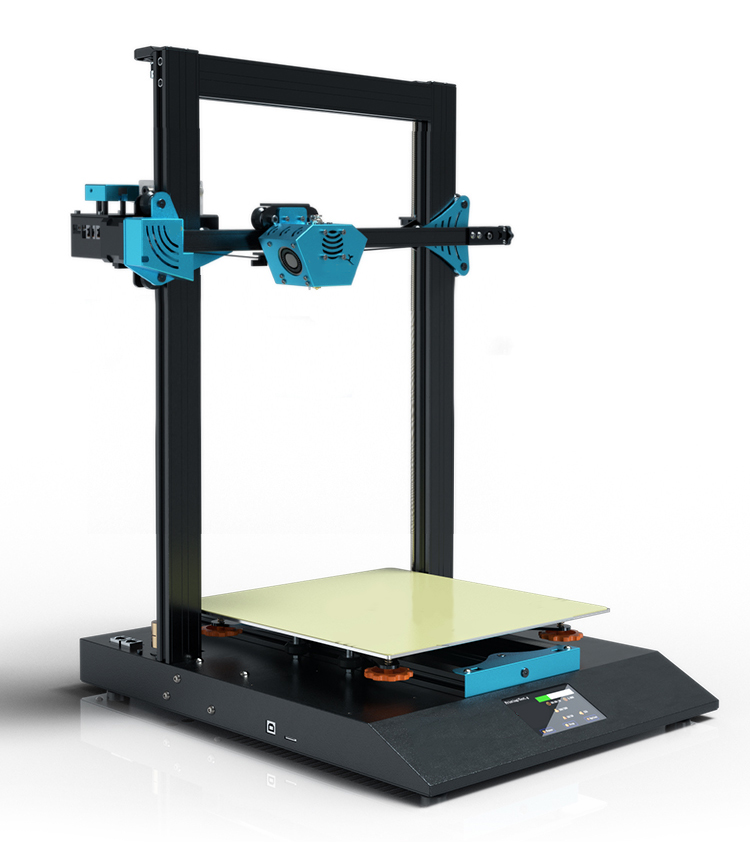

FDM 3D Printer
Bluer Plus
Large size FDM to meet your needs, high quality printing surface to make it more
widely used, support a variety of materials printing.

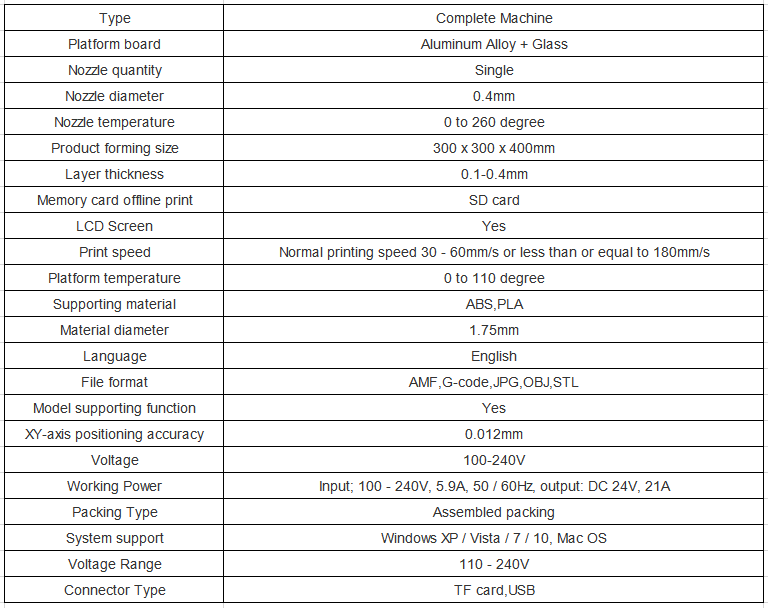

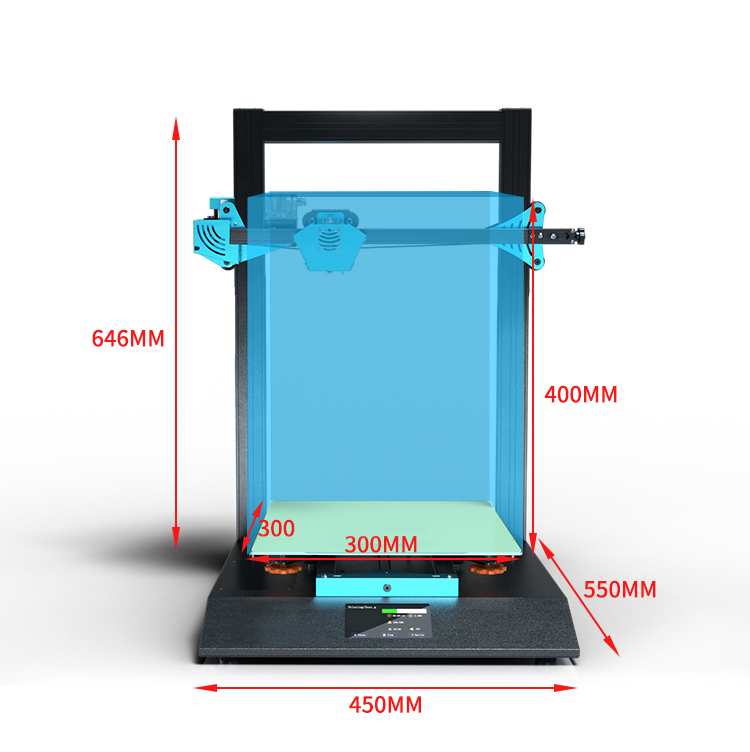

Tech specs
Feature

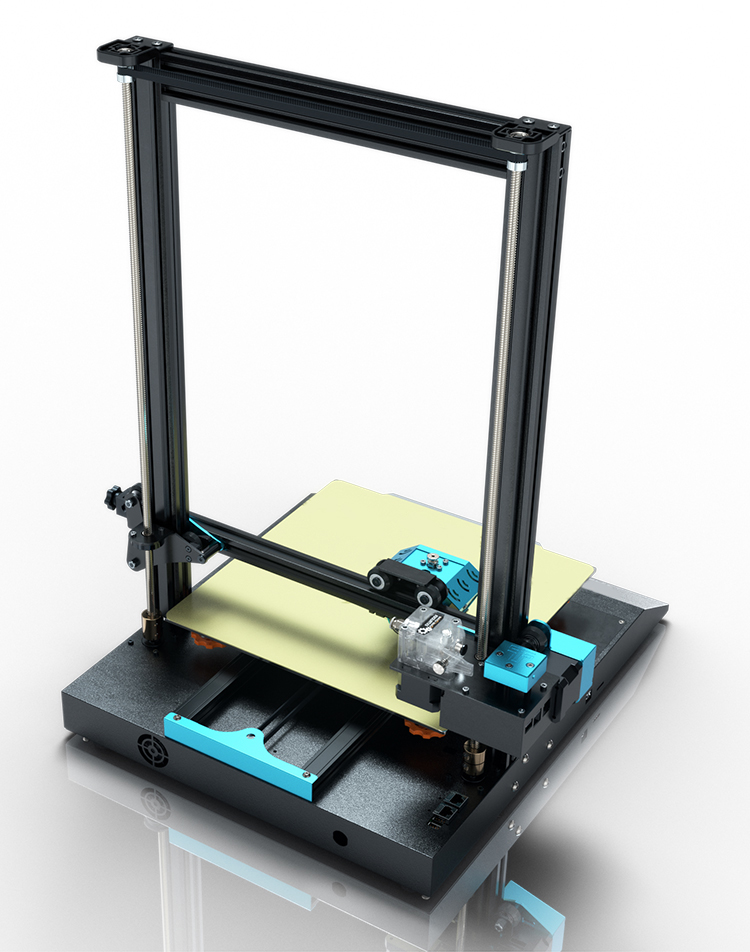

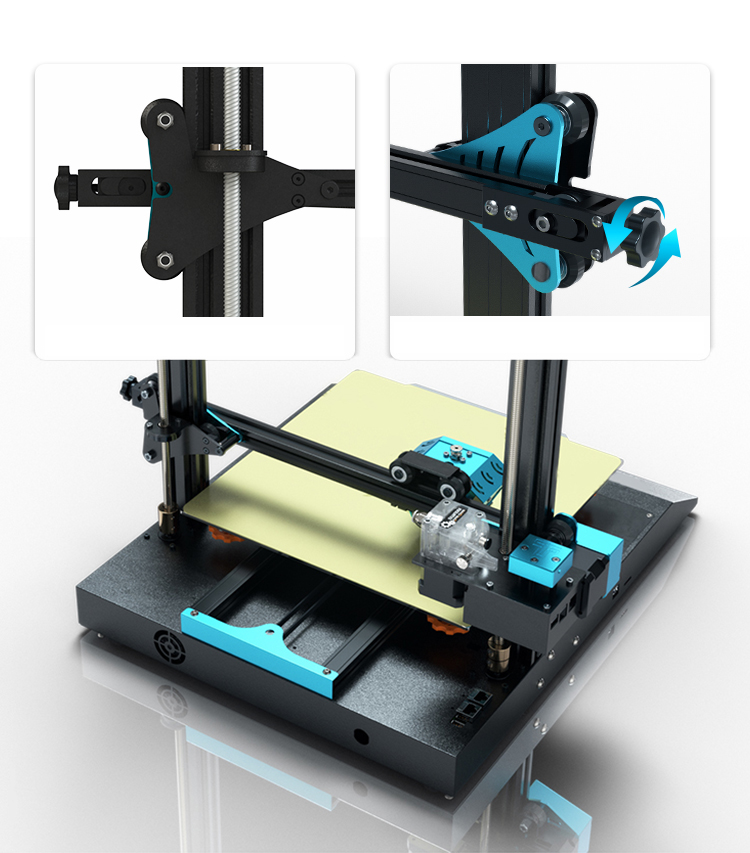

1.Adaptive slider design
Automatically adjust and fit the aluminum profile, no need to be careful that the slider
shakes to affect the printing accuracy.

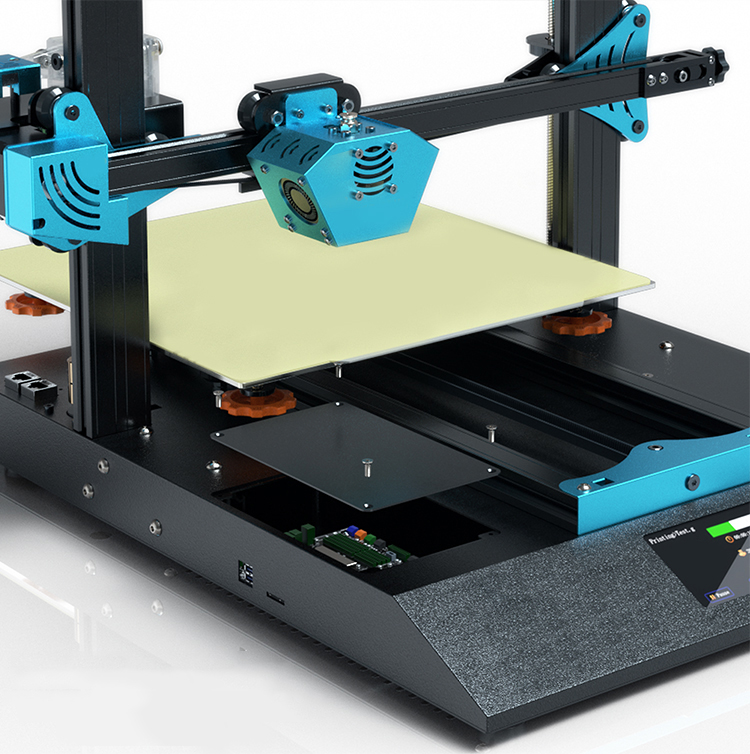

2.Optimized and clean wire
The wire is re-optimized to reduce the safety risk caused by the exposed wire harness. Double
Z axis synchronous motion transmission, higher precision. The X-axis tensioner can adjust the
tightness of the timing belt, which is convenient and quick.

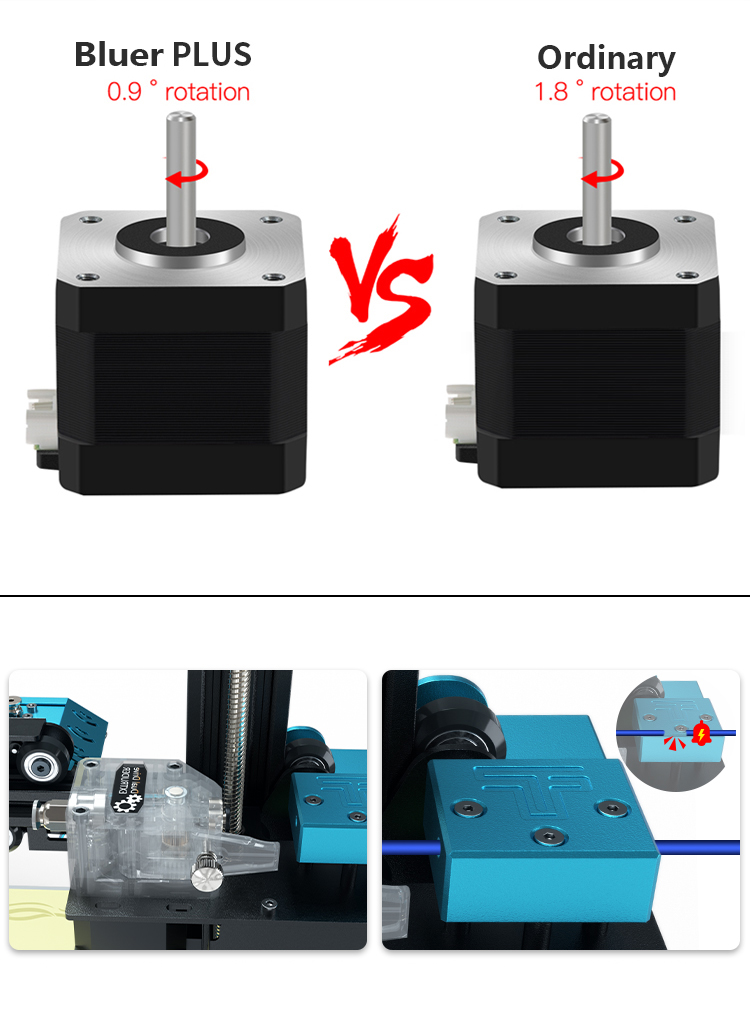

3. Powerful motor with higher precision
Replace the traditional 1.8° motor, the transmission is more precise when in use.
Double gears have strong force and smooth extrusion, support printing of a variety of consumables to ensuresmooth feeding. | Real-time monitoring of the printing process, automati shutdown when consumables are used up accidentally broken, saving energy and reducing consumption. |
4.Resume after power failure
If the machine is powered off, the model will not be printed. The power-off resuming printing
function can perfectly solve this problem. After power on, the operation interface can continue to
print, reducing the failure rate of printing.

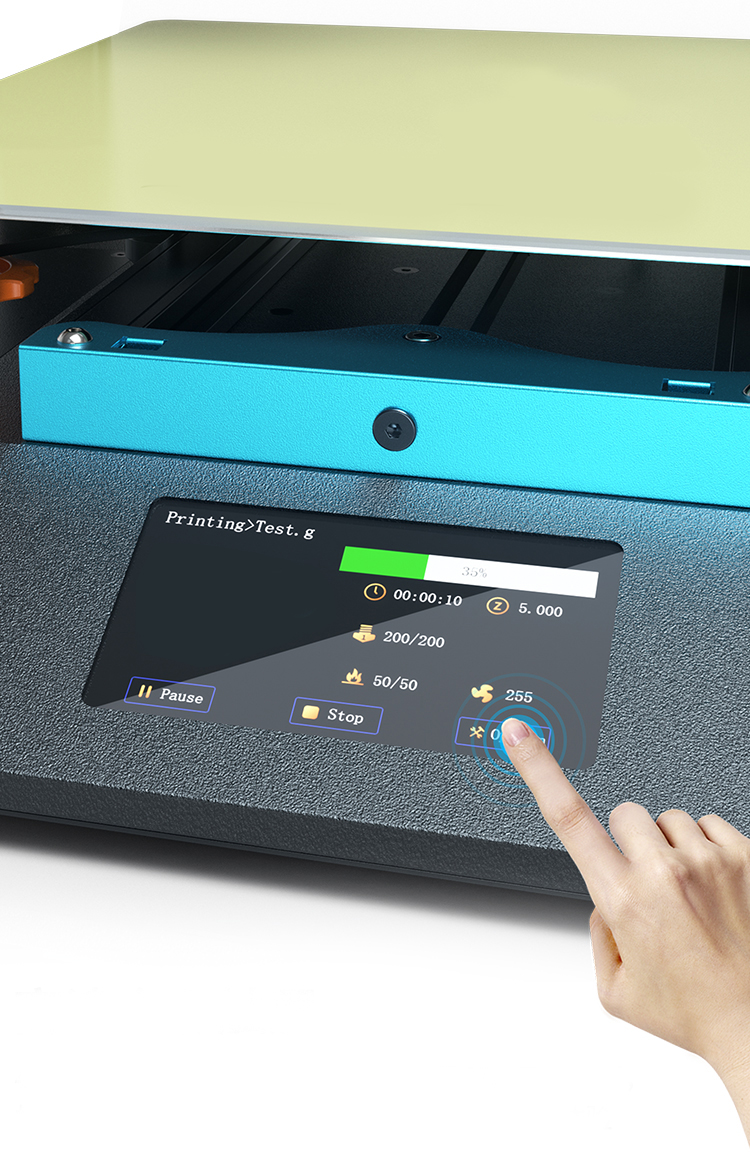

5.HD full color touch screen
The large 4.3-inch full-color touch screen, brand-new UI interactive interface, clear pictures, printing
status and function display will bring you a new experience.
APPLICATION
Contact Us : xslightings@xslightings.com
-
The x-axis direction of the print model is offset
Resolvent:
1: The synchronous wheel on the x-axis motor is loose and the jacking screw on the lower synchronous wheel is tightened;
2: The belt is used for a long time and becomes loose. It can be tightened with elastic buckle.
-
How to replace the consumables in printing
Resolvent:
When printing filling or supporting, rotate the knob anticlockwise on the main interface of the display screen to adjust the printing rate FR100% to 10%. After the printing speed drops, press and hold the extrusion spring clip to quickly pull out the old consumables, and then load the prepared new consumables into the printer (note that the consumables should be inserted in place). Then adjust the printing rate to 30% - 40% to see if it can print normally, and then adjust the printing rate to 100% after everything is normal.
-
Leveling steps while printing
Resolvent:
When printing, rotate the knob anticlockwise to reduce the FR100% (printing rate) on the screen to 30%, and the printing speed will decrease. When printing the bottom layer, you can gently touch the printed consumables to see whether they are glued to the platform. If not, it means that the gap between the nozzle and the platform is too large. Adjust the platform here until the consumables near here can stick to the platform In other places.
