CubeX P6
Product introduction:
The unique air purification system of CubeX P6 can remove ultrafine particles and foul smoke, improving a healthy printing environment. High resolution and fast speed are suitable for jewelry applications.
- Product Description
We are committed to the 3D printing industry,we have our own factory .Everything will be shipped soon and with high quality. Welcome to place order
DESCRIPTION
Aluminum Alloy Integrated Molding case, 360 seamless joint, self-developed yooin system with 4.3-inch touch screen,
power off and on the function, micron-level printing for the user to bring the ultimate experience.
Tech Specs
Machine size：200x200x378mm
X/YResolution：2560*1440pixel
Print size：132*74*150mm
Print thickness：0.01-0.1mm
Maximum print speed：30mm/h
Rated Voltage power：100-240V 80W
Print format：Support Stl, OBJ, SLC, ZIP format model
Type consumables：TPU wax-based materials, photosensitive
resins, biological materials
Application area： Education, scientific research, accessories,
biomedicine, culture and art, DIY creativity, model making
Features
Integrated design：Aluminum Alloy one-piece forming case, 360 without any screws and seams, hidden hinge hood.
Flow experience：The self-developed Yooin system with a 4.3-inch touch screen brings users a silky smooth experience.
.

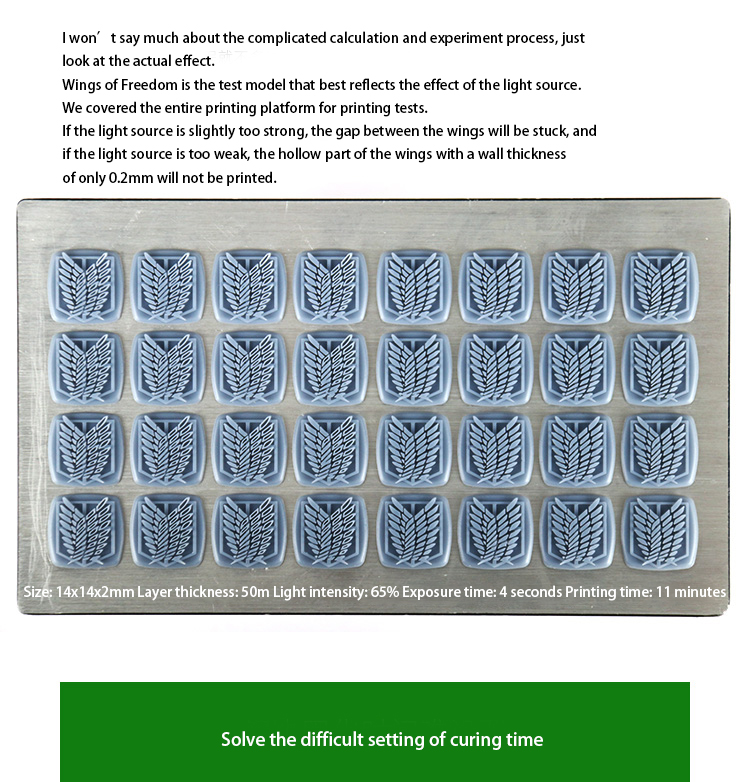

Revolutionary Light Control Technology：Surface uneven lighting solution, the curing time is difficult to set a problem.
High precision printing：The Light Control Algorithm of the system prevents overexposure, and the resin shrinkage compensation
parameters calibrate the model size to within 50 μm error.
Call after the power's out：Support power cut to play, detected abnormal power cut, the use of high-precision photoelectric switch
positioning, to ensure the micron-level error continue to print, print without trace.
APPLICATION
Points to note
When using this machine to print, please electrify for 2-5 minutes before starting to print
Contact Us : xslightings@xslightings.com
-
The x-axis direction of the print model is offset
Resolvent:
1: The synchronous wheel on the x-axis motor is loose and the jacking screw on the lower synchronous wheel is tightened;
2: The belt is used for a long time and becomes loose. It can be tightened with elastic buckle.
-
How to replace the consumables in printing
Resolvent:
When printing filling or supporting, rotate the knob anticlockwise on the main interface of the display screen to adjust the printing rate FR100% to 10%. After the printing speed drops, press and hold the extrusion spring clip to quickly pull out the old consumables, and then load the prepared new consumables into the printer (note that the consumables should be inserted in place). Then adjust the printing rate to 30% - 40% to see if it can print normally, and then adjust the printing rate to 100% after everything is normal.
-
Leveling steps while printing
Resolvent:
When printing, rotate the knob anticlockwise to reduce the FR100% (printing rate) on the screen to 30%, and the printing speed will decrease. When printing the bottom layer, you can gently touch the printed consumables to see whether they are glued to the platform. If not, it means that the gap between the nozzle and the platform is too large. Adjust the platform here until the consumables near here can stick to the platform In other places.
